Introduction

Vantec has long been a good manufacturer of heatsinks for this I will be reviewing the Vantec CCK-6035D here are some of the specifications.

Recommended For: Intel PIII Coppermine(FC-PGA)1.13 GHz and above AMD Thunderbird(Socket A or 462)1.33 GHz and above
Clip Material: SK7
Heat Sink Material: AL 6063T5 & Copper
Heat Sink Dimension: 65.0 x 64.0 x 39.0 (mm)
Fan Dimension: 60.0 x 60.0 x 25.0 (mm)
Outline Dimension: 78.0 x 64.0 x 64.0 (mm)
Bearing Type: Two Ball Bearing
Clip: CLP508
Weight: 386.0 (gm)
Thermal Resistance: 0.29°C/W

 Click here for a larger image Click here for a larger image

The fan is a 60mm Delta here are the specs of it

Fan Size(mm): 60.0 x 60.0 x 25.0 (mm)
Fan Speed(RPM): 6800
Air Flow(CFM): 37.6
Noise Level(dBA): 46.5


The 6035D HSF comes in the typical Vantec box

Click here for a larger image Click here for a larger image

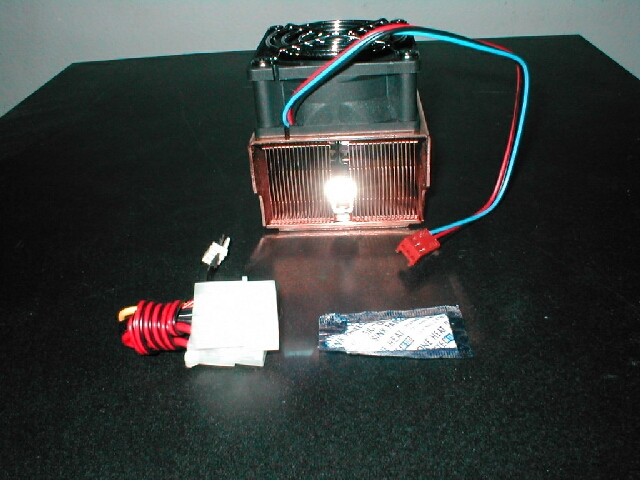

The heatsink comes with a free 3-4 pin adapter, and “white goop” thermal compound

I took the heatsink apart; here is the Delta with all its markings

Here is the top of the heatsink with the fan removed, nice and shiny.

The Vantec CCK-6035D has 34 thin fins you can also see the retention clip.

The bottom of the heatsink is well finished and reflective. There is really no need for lapping.

Click here for a larger image Click here for a larger image
