Silver Thermal Epoxy Review

OLYMPUS DIGITAL CAMERA

Introduction


Silver is one of the best conductors of heat, it dissipates it better than copper and aluminum. This silver epoxy contains 60% to 65% pure micronized silver and was formulated to conduct heat, not electricity. Even though it is made to not conduct electricity it can so do your best to keep it away from anything that is carrying a current. If you need to attach a heatsink or RAMsink or something of that nature to a computer component for cooling purposes you will want to have the best interface possible. Thermal tape is by far the easiest but does not perform well because its only tape, not a thermal compound. This silver epoxy should do a much better job.

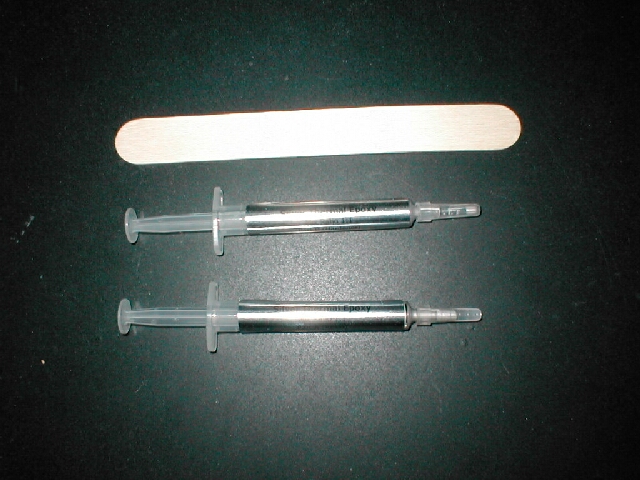

This Silver Epoxy is a 2-part epoxy, you get the hardener and the resin. You also get a stick to mix the two parts together

Click here for a larger image Click here for a larger image

I will be using the silver epoxy to reattach the RAMsinks on my Absolute Geforce 3 video card.  I first used a screwdriver to remove the RAMsink that are on the video card, when you do this be very careful not to damage your card, be sure that you do not scratch or break anything off of it. I also took a close-up shot of the RAM, this Geforce 3 is using 3.8ns EliteMT RAM chips.

Click here for a larger image Click here for a larger image

As you can see the RAMsinks are attached by the factory with thermal tape. Like I said before this stuff doesn’t work well for heat dissipation. You can also see if you look close imprints of the writing on the tape (left picture). I went ahead and took off the thermal tape and cleaned the bottoms with isopropyl alcohol (right picture).

Click here for a larger image Click here for a larger image

The silver epoxy works on a 1 to 1 basis so you should have equal amounts of both the hardener and the resin to get the best results. I used a little more resin than hardener because in the future I may want to remove the RAMsinks and with less hardener it will be much easier.

Click here for a larger image

Go ahead and use the mixing stick to mix both parts together. You will then want to apply a thin layer to the RAM. It shouldn’t be too thick, apply enough so it’s about the thickness of a few pieces of paper. When you apply the silver epoxy to the RAM try and not get it onto the pins, I got it on them a little and the card is fine but its best to not get it on them.

Click here for a larger image

To test the temperatures of the RAM on the video card I will be using a Thermal Probe. I will have the probe tip touching the side of the RAM in the same spot on both tests. I let the computer idle for about 15 minutes and took the readings. I then used 3DMark 2001SE looped for about 15 minutes to get the load temperatures. The graph below is when the card is at stock speed and with stock cooling.

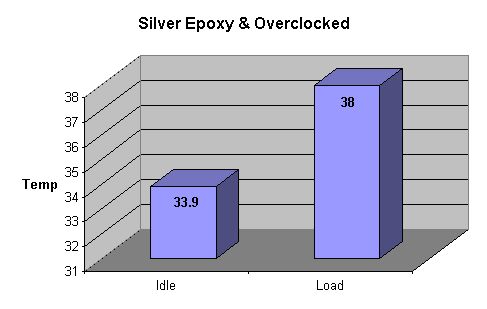

Rather than taking temperatures of the RAM at stock speed with the silver epoxy and comparing the two I decided to see what this stuff could really do with my Geforce 3. I overclocked the RAM from 460Mhz to 550Mhz, I then let the computer idle for about 15 minutes and took the reading. I again used 3DMark 2001SE to get the load temperatures. As you can see from the graph even when overclocked almost 100Mhz the RAM is still 2 degrees less at load compared to the stock speed and cooling load temperature

Conclusion

This silver epoxy performs really well as you can see from the graphs above even when the RAM was overclocked almost 100Mhz the temperatures were still below the stock speed and cooling temperatures. This stuff is really nice, I would definitely recommend this to anyone who wants to get the best results from their computer while overclocking. Now my Geforce 3 is faster than a Geforce 3 Ti 500. I would like to have seen some instructions and maybe a smaller stick with a flat surface included, however it’s not hard to figure out how to use it or to get something else to mix/apply with. Head over to ColdCPU and pick some up.

Pros:

  • Great price ($10.00)
  • Excellent performance
  • Enough for a few applications
  • It’s silver

Cons:

  • No instructions
  • Can conduct electricity
Brandon Turnbull is a technology enthusiast living in southern California. He has written numerous articles and tutorials about PC overclocking and modification.
