OCZ Gladiator 2 Heatsink Review

ocz-gladiator2

Introduction

OCZ sent over their two newest heatsinks and this is the first that I am reviewing. This heatsink is the Gladiator II which is the predecessor to the original Gladiator which was a great heatsink. I never reviewed the first one but I used it for a long time on many of my system and have two of them cooling the OCmodshop server. This heatsink is made of a single piece of pure copper meaning it isn’t soldered anywhere and has the following dimensions 62x70x44mm.

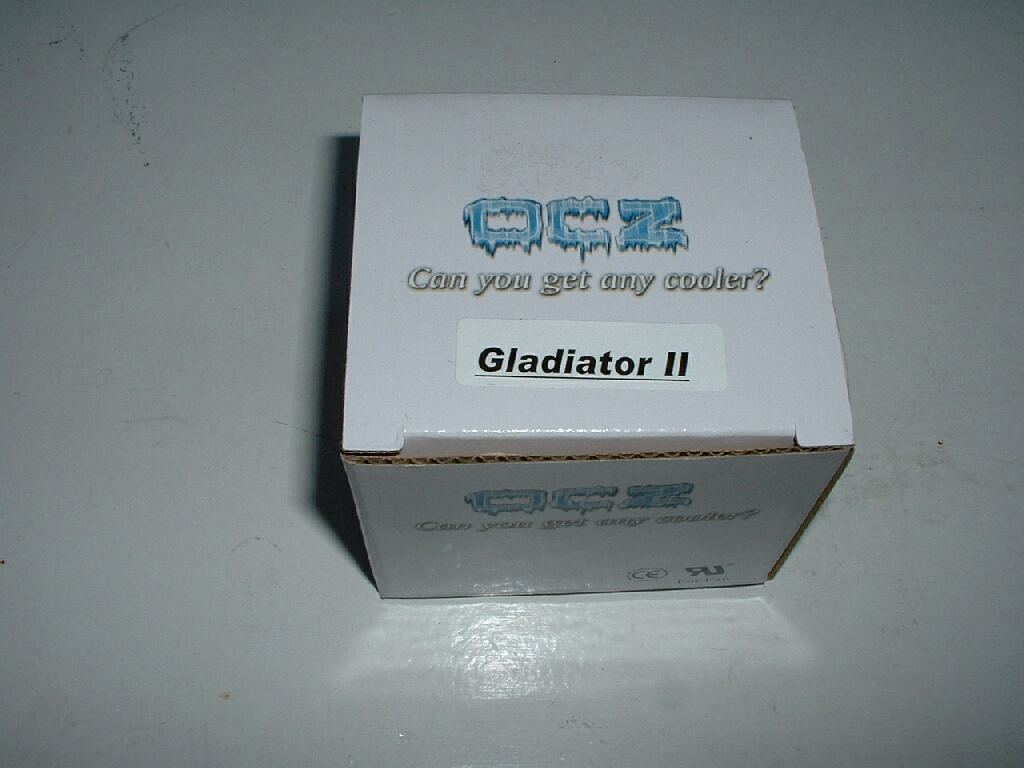

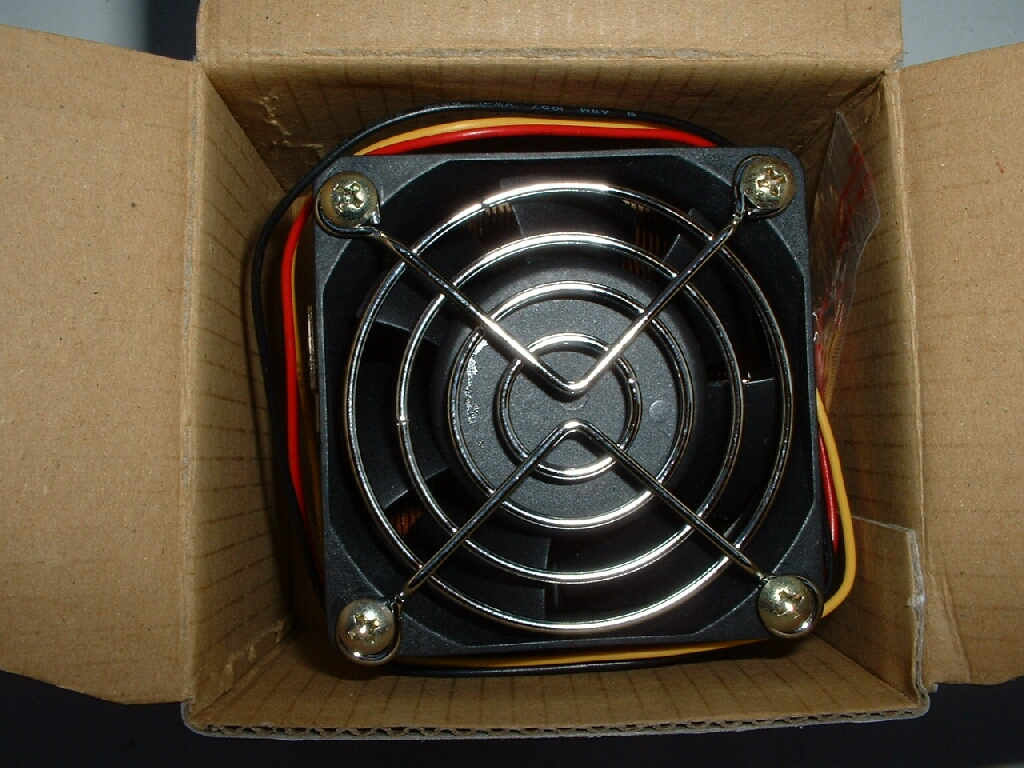

The Gladiator 2 comes in a pretty plain box with basically just what it is, but that’s ok. I opened up the box and it wasn’t protected by anything which is bad however it wasn’t damaged at all. I actually received six of these heatsinks because I will be giving away five after this review and none of them are damaged. So basically it doesn’t really matter that they are not wrapped in anything because they were alright.

Click here for a larger image Click here for a larger image

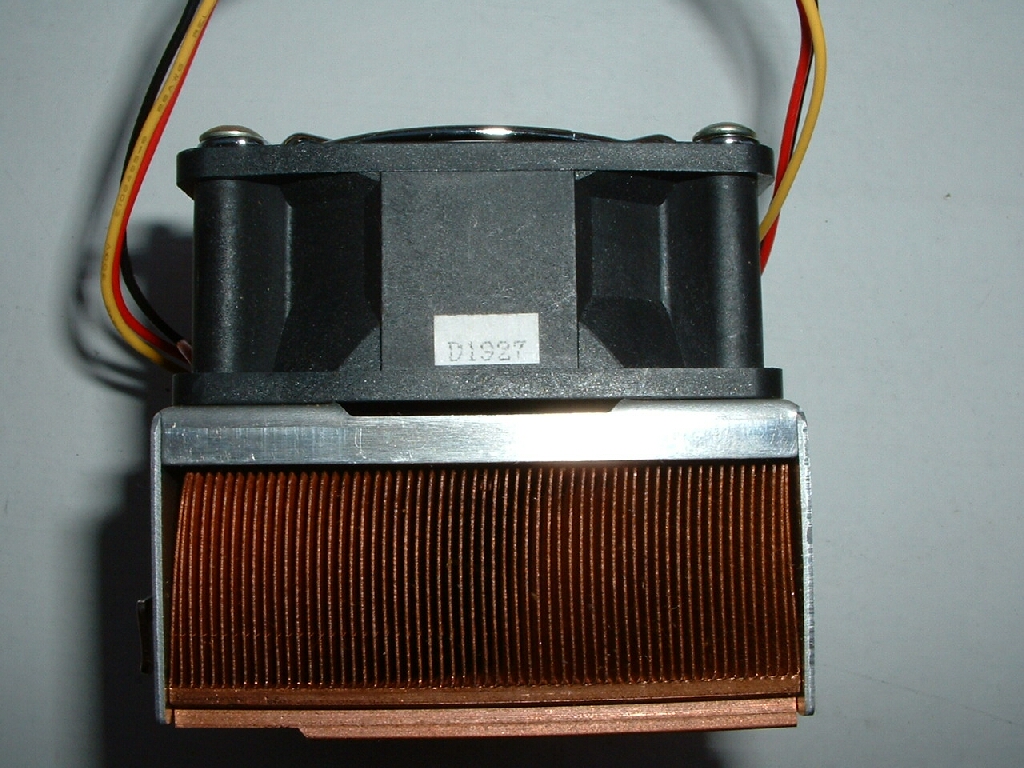

From the side of the heatsink you can see that there are lots of thin fins which use textured fin technology. The basic idea behind the new technology is that because the fins have a rougher texture to them they will dissipate heat better than if it was just smooth. I cant really say that there is any noticeable difference to this new technology and there is really no way to test it unless I had the same heatsink without the textured fins. I took off the fan and you can see down below it are all the fins which should hopefully cool the CPU well.

Click here for a larger image Click here for a larger image

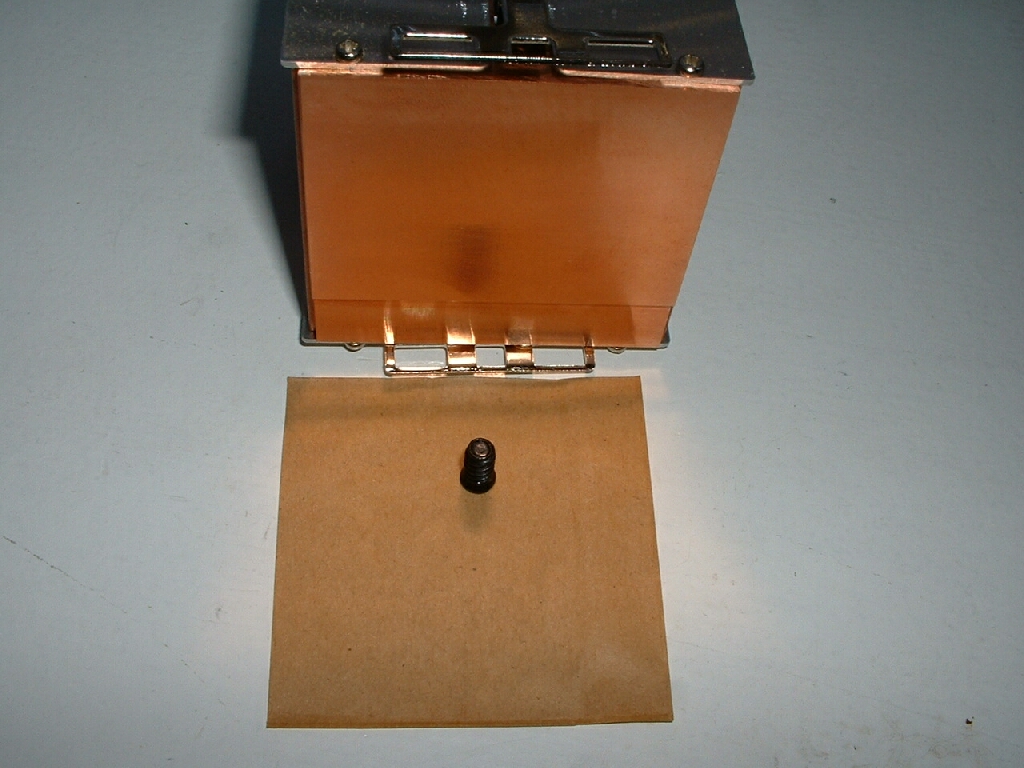

The heatsink comes in the box and is on top of a brow piece of paper which is there to protect the base from getting damaged. The base of the heatsink didn’t have any major scratches or anything but the finish on it wasn’t really good. I took the picture with a black fan screw next to the base to show the reflection, as you can see it isn’t very good. The clip on this heatsink doesn’t look as good as that of the old Gladiator. The old Gladiator used only one tab per side and didn’t need a screwdriver like this one does. The old Gladiator has the best clip that I have ever used with a heatsink, I will have to see later how this new clip does.

Click here for a larger image Click here for a larger image

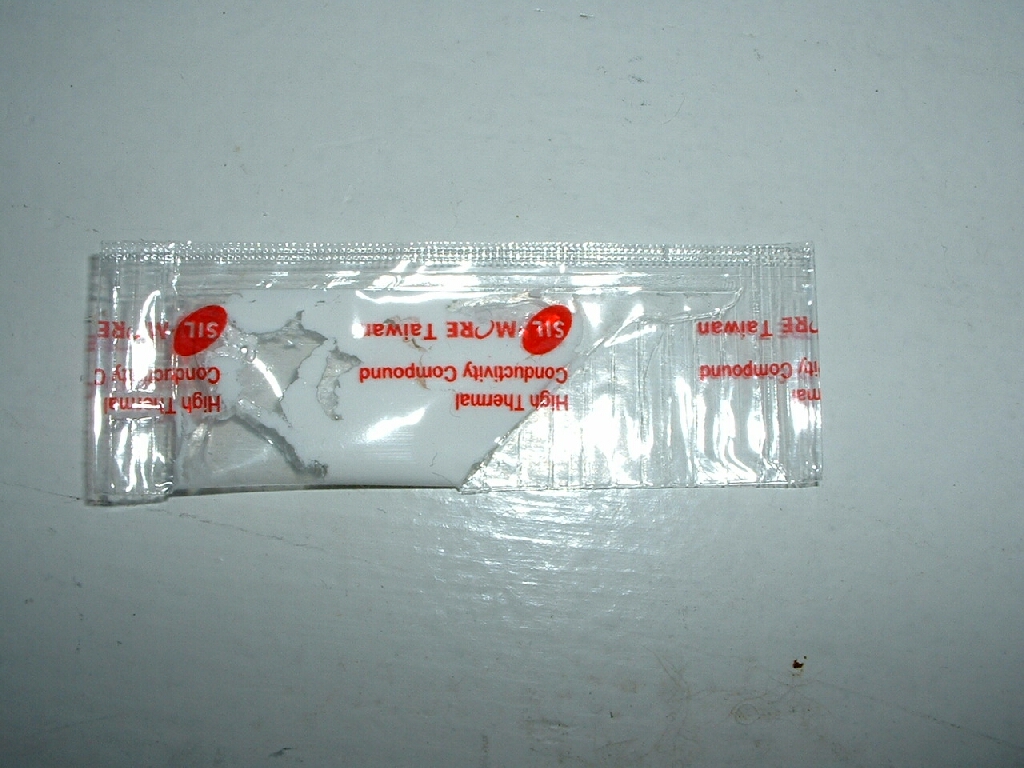

The fan that comes with this heatsink is a Young Lin Tech 60×25 with the following specs: 7000RPM, 68-70 dBa, 39.5CFM, and has a 3-pin connector. The fan is a high speed one and is obviously going to be quite loud which for me is a big downside to any heatsink. The Gladiator 2 comes with generic thermal compound which is much better than a thermal pad so I am pretty pleased about that.

Click here for a larger image Click here for a larger image
