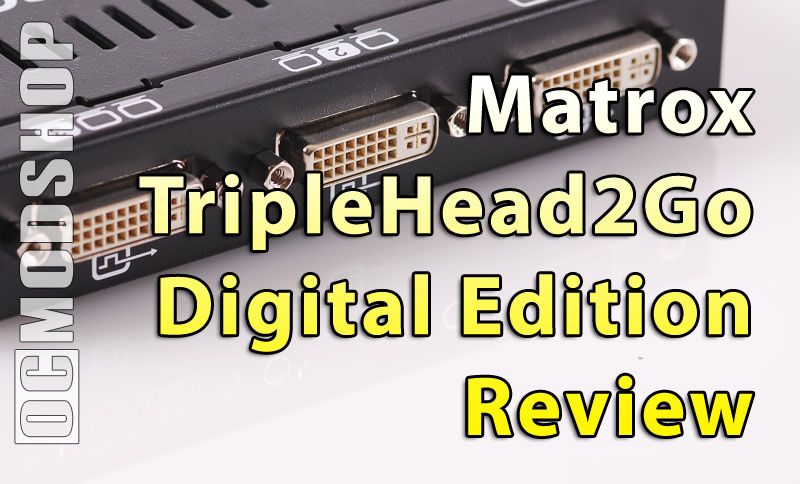

Matrox TripleHead2Go Digital Edition Review

matrox-triplehead2go-digital

Product information

Programmers, CAD Professionals, and Graphic Designers have been using multi-monitor support for years. The technology has been available to the average consumer since Windows NT4, but is a feature that goes mostly unused. Windows’ implementation of multi-monitor support hasn’t changed very much since the NT 4 days, and there are some weird caveats to deal with when using it. nVidia and ATI have desktop management software included with their drivers that address some of Microsoft’s shortcomings, but these extra features don’t make it seamless, nor do they provide multi-mon support for games. Matrox has been turning things around with their innovative multi-monitor products, especially with their latest product, the TripleHead2Go Digital Edition.

As the name suggests, the TH2G Digital Edition improves over their previous model with the replacement of analog VGA to completely digital DVI, both for input and output. This new unit will still take regular VGA as a source, and outputs to three different monitors. To add even more flexibility, you can mix and match monitors however you wish: not all of your monitors have to be digital. Your multi-monitor setup can include 2 analog monitors and a digital LCD panel, a 3-LCD setup, or any other combination. If you can’t scrounge together 3 monitors, then don’t worry: the unit will also function as a DualHead2Go, and you can add another monitor later.

Experience Surround Graphics
TripleHead2Go Digital Edition delivers the ultimate surround graphics experience for professionals and gaming enthusiasts alike. This versatile new product enables users looking to add three digital monitors to their workstation, desktop computer or notebook with a maximum resolution of up to 3840×10241 (triple 1280×1024).

The latest in Matrox’s series of Graphics eXpansion Modules (GXM), TripleHead2Go Digital Edition is an external multi-display upgrade device that connects via the dual-link DVI or analog output of your system and can support both analog and digital monitors. Dramatically increasing Office Productivity for business professionals, providing an incredible Surround Design environment to high-end workstation users and delivering the most immersive Surround Gaming™ experience to gamers, the TripleHead2Go Digital Edition is the ideal solution for individuals looking for a truly digital-to-digital experience.

Key features

  • Features a dual-link digital input for high-end workstations and DVI monitors.
  • Brings digital monitor support to systems with an analog (VGA) output.
  • Flexible device supports both dual-monitor configurations at a maximum resolution of up to 3840 x 1200 (2x 1920×1200)1 and triple-monitor configurations with a maximum resolution of up to 3840 x 1024 (3x 1280×1024)1 with digital or analog monitors.
  • Harness your existing graphics hardware’s full capabilities for 2D, 3D and video.
  • Experience Surround Gaming by expanding supported 3D games across three displays; achieve a much wider in-game field of view.
  • Experience Surround Graphics and execute your workload faster by expanding your desktop across three displays.
  • Includes Matrox Monitor Bezel Management software feature for an enhanced gaming experience2.

Multi-display configurations
Use built-in display of notebook to achieve a quad display configuration.
Upgrade notebook to three external displays.
Upgrade integrated-graphics based desktop to three external displays.

Benefits of Monitor Bezel Management: Real life simulation
Matrox TripleHead2Go’s Monitor Bezel Management technology is an exclusive software feature with the TripleHead2Go Digital Edition that effectively “hides” part of the image behind the bezel of your monitor, and creates the effect of a continuous image-bringing a new realism to gaming in particular to simulation-type video games. By selecting this option through the Matrox PowerDesk SE3 interface, race simmers for example, can see the race track with the race track lines fully aligned from the base leg without the monitor bezels hindering their view, and allowing them to have a “real-life” racing experience.


Matrox TripleHead2Go Supported resolutions
Two Monitors Refresh Rates
2048 x 768 60Hz
2560 x 1024 60Hz
2720 x 768 60Hz
2880 x 900 60Hz
3200 x 1200 60Hz
3360 x 1050 60Hz
3840 x 1200 58Hz
Three Monitors Refresh Rates
1920 x 480 60Hz
2400 x 600 60Hz
3072 x 768 60Hz
3840 x 720 60Hz
3840 x 768 60Hz
3840 x 800 60Hz
3840 x 960 60Hz
3840 x 1024 60Hz

Portability and installation
Light-weight and ultra-compact, you can easily take TripleHead2Go Digital Edition with you and experience all the benefits of a surround desktop at the office, at interactive customer design reviews or at LAN parties.

Unlike installing a new graphics card, TripleHead2Go doesn’t require opening your computer, inserting parts into it, or replacing any hardware or software.

Setup is as easy as 1, 2, 3. Once the software is installed, it’s basically just a matter of connecting your monitors.

For Windows users all mode setting is available through Display Properties -> Settings.

Minimum system requirements

  • Dual-link DVI or single VGA output connector, on a compatible system
  • Microsoft® Windows® XP, Windows 2000, Windows XP x64bit, Windows Vista™ and Mac® OS X v10.4
  • Display driver supporting 1920 x 480, 2400 x 600, 3072 x 768 or 3840 x 1024 resolution
  • Powered USB connector

*Under Windows 2000, when TripleHead2Go is connected to a notebook only the 3 external displays will be active – the LCD screen will be disabled.

Product information
Dimensions: 10 cm x 14 cm x 3.2 cm Weight: 280 grams Connectors: 1x HD-15 (analog) for input, 1x DVI-I (digital) for input, 3x DVI-I (digital) for output, 1x USB for power Warranty: 2-year limited warranty Part number: T2G-D3D-IF Hardware included

  • TripleHead2Go box
  • One HD15-HD15 2′ VGA cable
  • One DVI-DVI 2′ cable
  • One USB cable
  • Quickstart paper and CD, which includes the following software:
    • Install package
    • PowerDesk SE (includes Image quality adjustment, center popup, window management, Matrox Monitor Bezel Management feature, etc.)
    • Electronic Product Manual
