In Win GRone Full Tower ATX Case Review

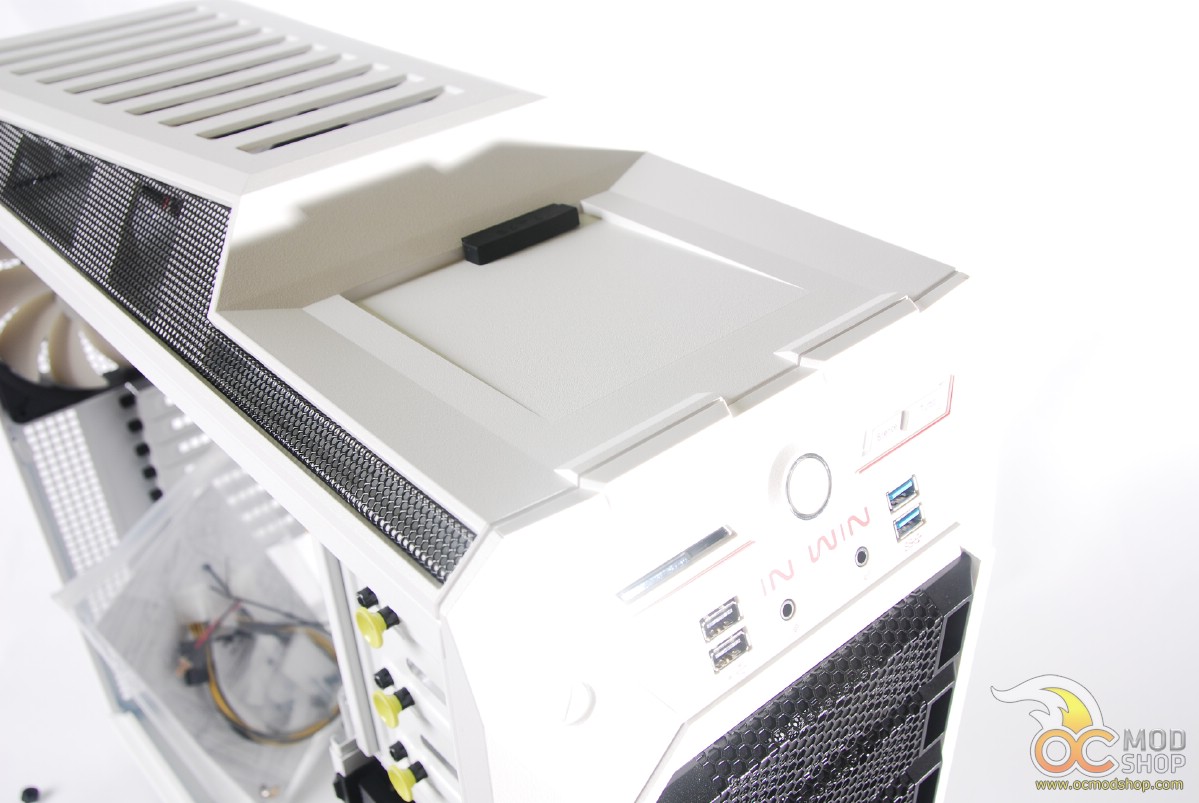

Front Panel with SATA

Introduction

The GRone is In Win’s latest entry into the PC enthusiast case market.  The company has a history of churning out great computer chassis, so we’re excited to see that this new one has to offer.

The GRone (G.R. One and not “groan”) is available in white, black or metallic gray.  We received a bright white sample, which really makes the black accents visually pop out.

Features

  • 0.8mm SECC Steel ATX Full Tower
  • USB 3.0 x 2 (Internal Connector)
  • USB 2.0 x 2
  • HD/AC’97 Audio
  • Fan Speed Controller Front Ports
  • 3 External 5.25″ Drive Bays
  • Internal 3.5″ x 8 or 2.5″ x 8 Internal



Specifications

Name GRone
Case Size Full Tower Chassis
Material 0.8mm SECC Steel
Drive Bays External 5.25” x 3
Internal 3.5” x 8 or 2.5” x 8
M/B Form Factor E-ATX (12” x 13”) / ATX / Micro-ATX
Power Supply ATX 12V, PSII Size and EPS
I/O Expansion Slots PCI-E / PCI / AGP Slot x 8 (Supports up to 365mm)

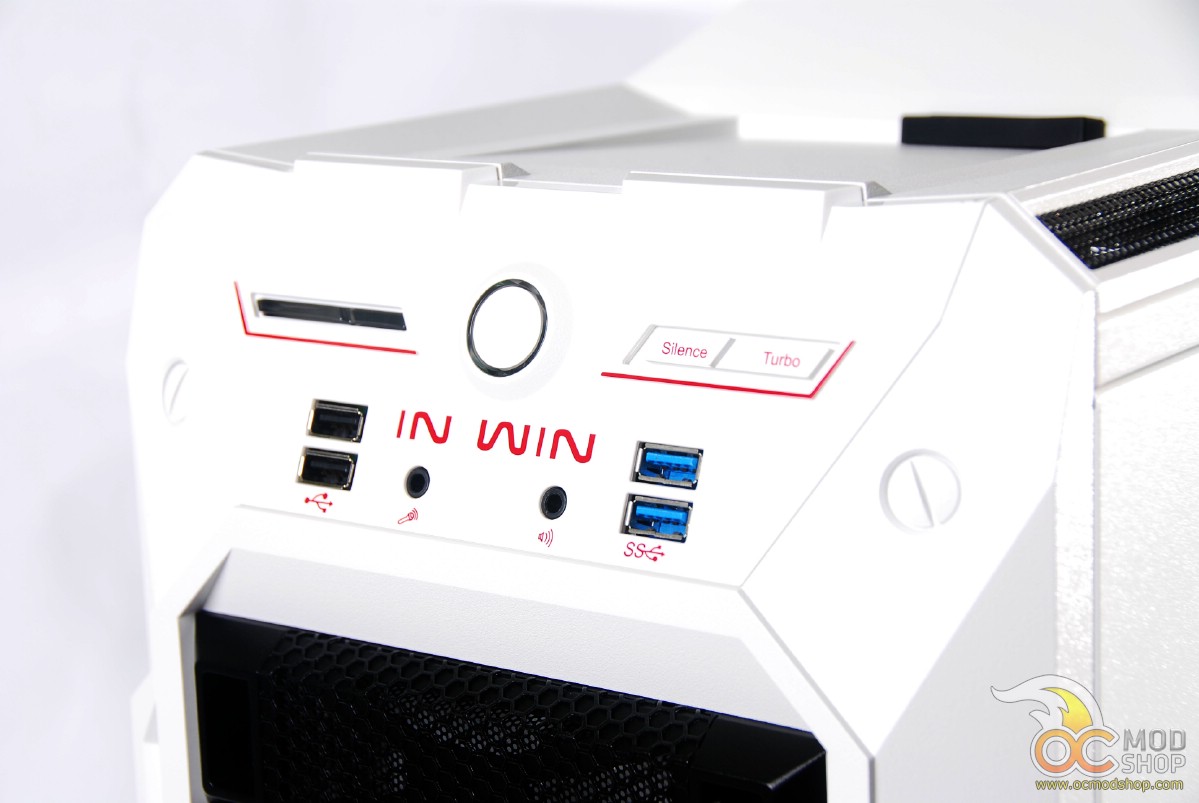

Front Ports 1. USB 3.0 x 2 (Internal Connector)
2. USB 2.0 x 2
3. HD/AC’97 Audio
4. Fan Speed Controller

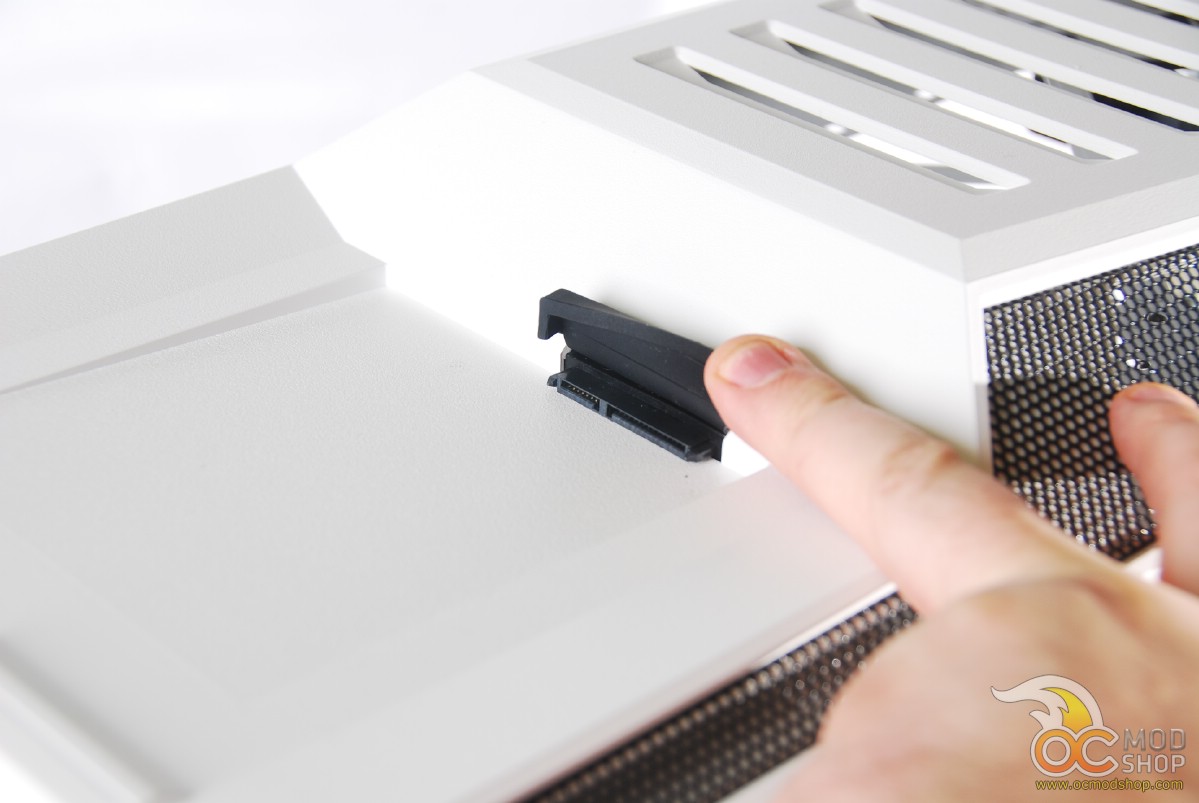

Top Ports 3.5”/2.5” SATA HDD EZ-Swap x 1
Thermal Solution *Cooling Fan
Supports up to Total 120mm or 140mm Fan x 10
(Different Regions May Carry Different Specifications)
1. Front: Supports up to 120 or 140mm Red LED Fan x 2
2. Rear: Supports up to 120 or 140mm Fan x 1
3. Side: Supports up to 120 or 140mm Fan x 1
4. Top: Supports up to 120 or 140mm Fan x 3
5. Bottom: Supports up to 120 or 140mm Fan x 2
6. HDD Cage: Supports 120 or 140mm Red LED HDD Fan x 1
*Water-Cooling
1. Top: Supports Water-Cooling Radiator up to 360mm
2. Bottom: Supports Water-Cooling Radiator up to 240mm
(Bottom HDD Cage Must be Removed)
3. Rear: Water-Cooling Hole Ready
Fan Technical Data GRone Metallic Grey
14cm Red LED Fan (140*140*25mm)/ 1200RPM ± 10%/ 23 ~27.8dBA
14cm Black Fan (140*140*25mm)/ 1200RPM ± 10%/ 23 ~27.8dBAGRone White
14cm White LED Fan (140*140*25mm)/ 1200RPM ± 10%/ 23 ~27.8dBA
14cm White Fan (140*140*25mm)/ 1200RPM ± 10%/ 23 ~27.8dBA
(Subject to Regional Specification)
Dimensions (H x W x D) 562 x 245 x 593mm (22.1” x 9.6” x 23.4”)

On the next page we look at the outside features…

Page 1 of 612345...Last »

2 Comments

  1. Claude

    January 30, 2013 at 11:28 am

    Best case I have ever owned. Would like to have a instruction on hooking up the fans to the switch on the front panel.

    • ocmodshop

      January 30, 2013 at 1:55 pm

      The case should have come with instructions. Basically just connect your case fans to the 3-pin leads coming from the front panel. You'll find these leads when you take off the back panel.
