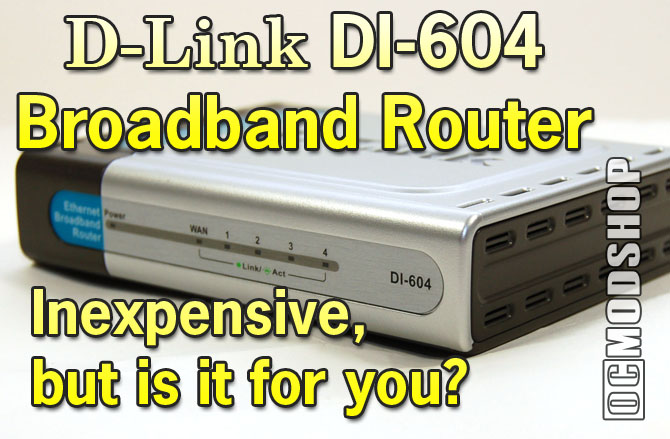

D-Link DI-604 Broadband Router Review
It happens to the best of us—too many devices demanding easy access to the internet and each other. Yes, wireless is here and wonderful, but sometimes it’s just easier to use a wired connection.
A modem is woefully inadequate once you have more than a mere computer seeking a meaningful connection to the outside world. If you want a workhorse router with advanced features and reliable connection, the Dl-604 by D-Link is a great option—provided you don’t need wireless, and in no time at all you’ll be surfing, checking out mobile phone deals online or just chatting with friends, with no worry about modems and botched connection speeds due to sub-standard hardware.
D-Link, the worldwide leader in innovative home and business networking, sets a new standard for broadband router performance and price with the new Express EtherNetwork DI-604.
| Specifications | |
| Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3 NWay Auto-Negotiation |
| VPN Pass Through/Multi-Sessions | PPTP L2TP IPSec |
| Advanced Firewall Features | NAT with VPN Passthrough (Network Address Translation) MAC Filtering IP Filtering URL Filtering Domain Blocking Scheduling |
| Device Management | Web-Based – requires at least Microsoft Internet Explorer v5 or later; Netscape Navigator v4 or later; or other Java-enabled browsers. |
| Media Access Control | CSMA/CA with ACK |
| LEDs | Power WAN Local Network—10/100 |
| Operating Temperature | 32°F to 131°F ( 0°C to 55°C) |
| Humidity | 95% maximum (non -condensing) |
| Power Input | External Power Supply DC 5V, 2.4A |
| Safety & Emissions | FCC UL |
| Dimensions | L = 5.6 inch (142mm) W = 4.3 inch (108.8mm) H = 1.2 inch (31mm) |
| Weight | 0.44 lbs (200g) |
| Warranty | One Year |
The DI-604 combines the latest advancements in chip technology, low-cost design and manufacturing with new, feature-rich firewall and network management controls to give you quite possibly the most advanced, yet affordable Ethernet router to date. The Cable Diagnostic Utility feature is the latest utility included in the DI-604 for diagnosing cable connection problems with the wired Ethernet cable. This feature can indicate to users which Ethernet cable connected to the router has problems, identifying where and what the problem is.
The DI-604 is ideal if you’re creating your first home or small business network, or if you’re a more advanced user looking for additional management settings. A simple, yet intelligent, web-based setup wizard makes the DI-604 easy for anyone to quickly and securely connect computers to share a high-speed Internet connection, files, resources, games or just to communicate.
The DI-604 has an integrated 4-port switch with 10/100 Ethernet ports for directly connecting up to four computers. And one Ethernet cable is included with the DI-604, just to get you started.
4 Comments
I want to configuration manual of this router with default admin password plz co-operate.Thanks for ur kind consolesance
I believe you can reset the admin password by holding down the reset button for 30 seconds. The username and password should then be 'admin' and 'admin'. Try the D-link website for the manual.
I'm working on getting a huge download area working on OCModShop, so users can upload and share files like this router's manual.
hi sir i have D-Link DI-604 Broadband Router and i need to sold it for any one with any priaces i m from egypt and i need ur answer as soon as u can
