Introduction

This motherboard uses Intel’s I845G, the G in the name signifies that the motherboard has onboard graphics. This motherboard supports PC2700, PC2100, PC1600 DDR SDRAM. There are a lot of cool features on this motherboard including onboard sound, onboard video, USB 2.0, Dual BIOS, Vcore adjustments.

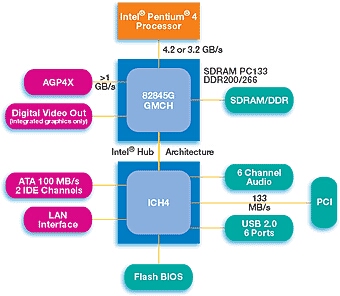

You get USB 2.0 with this motherboard which is very nice, however you don’t get ATA133 which is a negative aspect because most motherboards now do support this. The motherboard comes with onboard video which I mentioned before which is possible because of the Intel 845G chipset. There is also onboard sound which uses the Realtek AC’97 CODEC, the motherboard also has onboard LAN which is also powered by Realtek.

  • Support 533 MHz FSB Intel Pentium 4 socket 478 CPU
  • Support PC2700 / PC2100 / PC1600 DDR SDRAM
  • Support EzWinFlash BIOS
  • Support Open JukeBox
  • Support Vivid BIOS technology
  • Integrated 2D/3D Graphics Engine with Dynamic Video Memory Technology
  • Support Realtek 10/100Mbps LAN controller on board
  • AC’97 2.2 Audio support / Audio Codec on board (5.1 channel)
  • Jumper-less Design
  • Dr. LED (User Upgrade Optional)
  • Dr. Voice II
  • Support 6 USB 2.0 ports
  • Support Ultra DMA/100 HDD
    (Additional UDMA/100 Cable included)
  • Support S/PDIF interface
  • CPU: Intel Pentium 4 Processor
  • ASIC: Intel 845G chipset
  • Architecture: 6 PCI slots +1 AGP slot + 1 * CNR
  • Max. Main Memory: Max. 2GBDDR SDRAM for 184pin DIMM*3
  • DIMM Type: 64/128/256/512MB/1GB
  • On Board VGA: Integrated 2D/3D Graphic Engine on board
  • OnBoard Sound: Realtek AC’97 CODEC onboard (5.1 channel)
  • On Board LAN: Realtek LAN controller on board for 10/100Mbps Ethernet
  • On Board I/O:
    1 Serial Port (UART 16C550 Support)
    1 VGA Port
    1 Parallel Port (SPP/EPP/ECP Support)
    2 Channel E-IDE (Mode 4 and Bus master Ultra DMA 33/66/100 Support)
    1 Floppy Drive Connector (1.2/1.44/2.88MB)
    2 Universal Serial Bus Ports
    1 10/100 Mbps Ethernet Port
    1 PS/2 Mouse Port

    1 PS/2 Keyboard Port
    Game/Midi Port ,Speaker-Out ,Line-In , Mic-In
  • Onboard Connector:
    IrDA , Wake-On-LAN , Wake-On-Modem, CPU Fan, Fan2, Fan3 , CD_IN, AUX-IN , COM2, S/PDIF, FRONT AUDIO, Dr. LED, Chassis intrusion connector, Additional 4 USB 2.0 Ports (via optional cable)
  • Battery: 3V Lithium Battery
  • Green Function: Yes
  • BIOS: Award Plug and Play 4Mb Flash ROM BIOS
  • Board Size: 305mm x 218mm, ATX Form Factor
